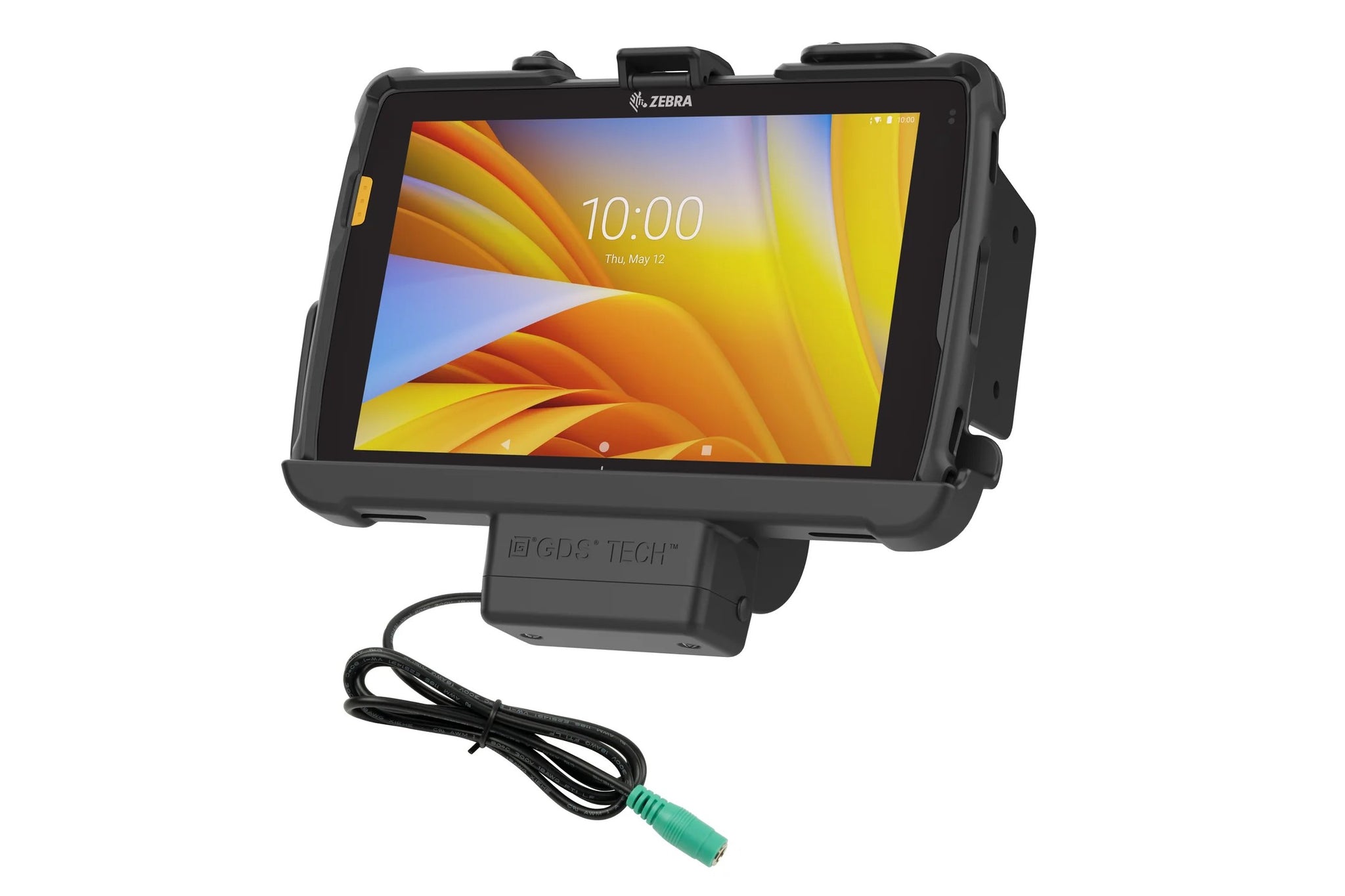

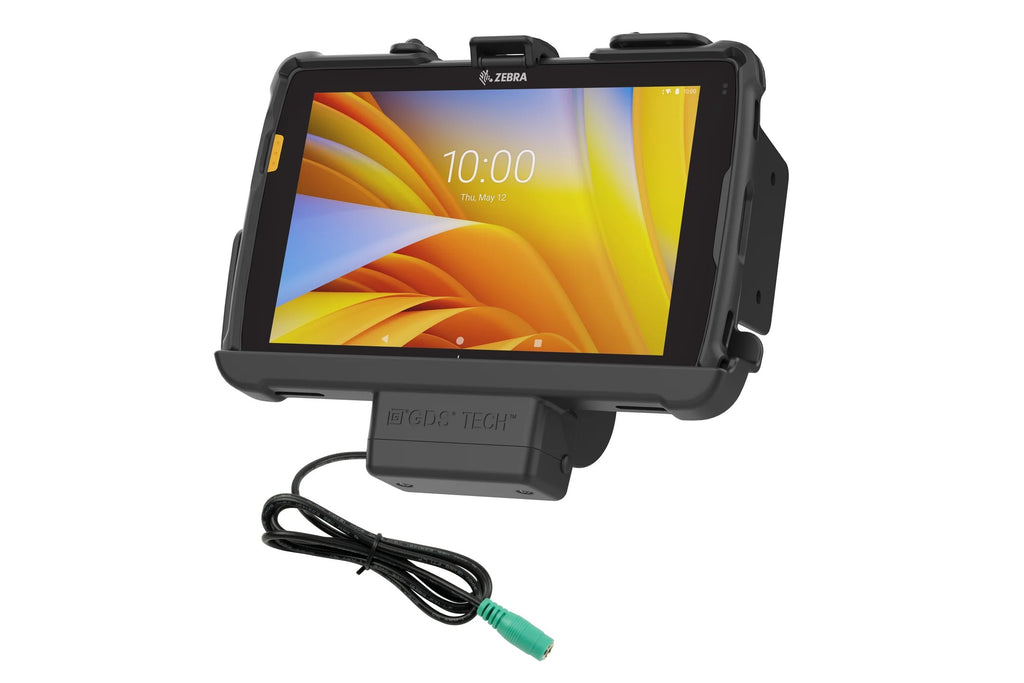

RAM® Tough-Dock for Zebra ET4x 8" (20.32cm) Tablet

Charging Only Model

Model Summary: Basic dock with charging functionality via pogo pins.

• Charging Only via 5.5mm DC input

• No USB/peripheral data support

• Weight: 1.24 lb (562 grams)

• Output Ports: None

• Certifications: RoHS, WEEE, CE, UKCA

• Extra Mounting Options: Yes (RAM® 2-hole diamond base)

• Use Case: Power-only applications where no external device connection is needed

• Not Compatible: IntelliSkin®

• Part Suggestion w/o Rugged Frame: RAP-INSERT-ZE20U

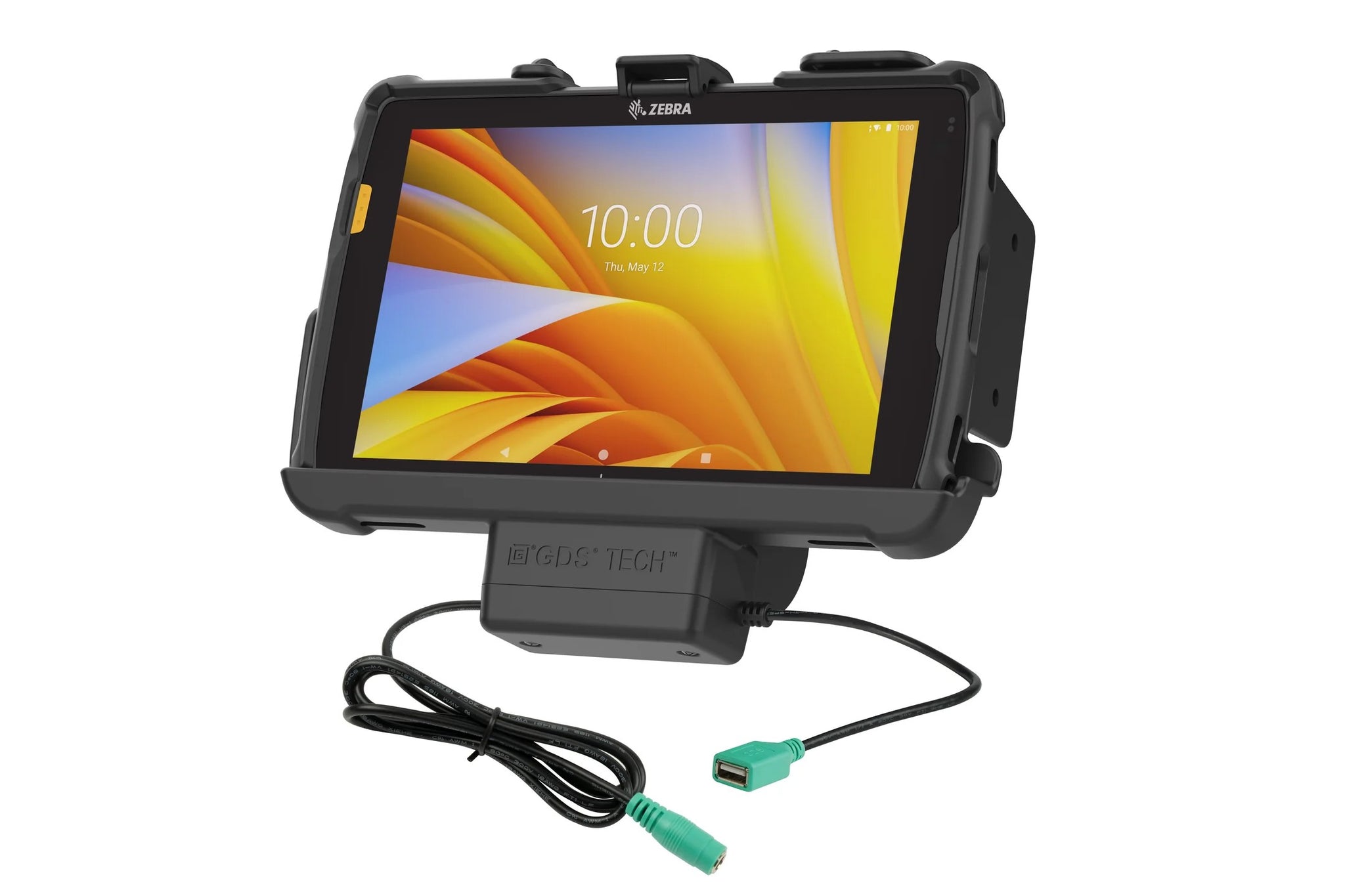

Charging + Single USB-A Data Port

Model Summary: Charging plus 1 USB Type-A for connecting a single peripheral.

• Charging via 5.5mm DC input

• Data Support: 1 × USB 2.0 Type-A

• Weight: 1.35 lb (612 grams)

• Peripheral Output: 500mAh

• Transfer Speed: 12Mbps

• Certifications: RoHS, WEEE, CE, UKCA

• Use Case: Scanning + one peripheral (e.g., barcode reader, printer)

• Not Compatible: IntelliSkin®

• Part Suggestion w/o Rugged Frame: RAP-INSERT-ZE20U

Charging + Dual USB-A Ports

Model Summary: Charging plus 2 USB Type-A ports for connecting up to 2 peripherals.

• Charging via 5.5mm DC input

• Data Support: 2 × USB 2.0 Type-A

• Weight: 1.27 lb (576 grams)

• Peripheral Output: 900mAh per port

• Transfer Speed: 12Mbps

• Certifications: RoHS, WEEE, FCC, CE, ICES, UKCA

• Use Case: Dual peripheral use—printer + scanner, etc.

• Not Compatible: IntelliSkin®

• Part Suggestion w/o Rugged Frame: RAP-INSERT-ZE20U

Charging + USB-A + USB-C (Hybrid)

Model Summary: Most versatile—charging plus USB Type-A and Type-C, supports up to 2 different types of peripherals.

• Charging via 5.5mm DC input

• Data Support: 1 × USB-A, 1 × USB-C

• Weight: Not fully listed but assumed similar

• Use Case: Modern setups needing both legacy (USB-A) and newer (USB-C) peripheral support

• Not Compatible: IntelliSkin®

• Part Suggestion w/o Rugged Frame: RAP-INSERT-ZE20U

Features :

• Compatible with C and D size RAM® 4-hole AMPS & 75x75mm VESA bases

• Integrated pogo pins for seamless charging

• Allows scanning functionality while docked

• Accommodates Expansion Back & PowerPack

• Built-in 2-hole mounting plate for additional device

• MIL-STD 810G tested

• Includes side bracket & mounting hardware

• 3-Year Warranty

• Packaging: Poly Bag

• Input Cable: 1 Meter with 5.5mm DC connector
